ناموجود
۱ عدد Clear CMOS jumper
۱ عدد System panel
3 عدد
Realtek RTL8111H
۱ عدد Gigabit LAN Controller(s)
ASUS LAN Guard
Realtek ALC887 8-Channel High Definition Audio CODEC
6 فاز
Realtek ALC887 8-Channel High Definition Audio CODEC
Audio Feature :
– LED-illuminated design – Brighten up your build with the gorgeous illuminated audio trace path
– Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
– Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
– Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
Choose the chassis with HD audio module in front panel to support 8-channel audio output
کانکتور برق اصلی 24 پبن ATX
3 عدد
یک عدد
دو عدد
۱ مسیر PCIe 3.0/2.0 x16 (x16 mode)
۱ مسیر PCIe 3.0/2.0 x16 (x8 mode)
۱ مسیر PCIe 3.0/2.0 x16 (max at x4 mode)
۲ مسیر PCIe 2.0 x1

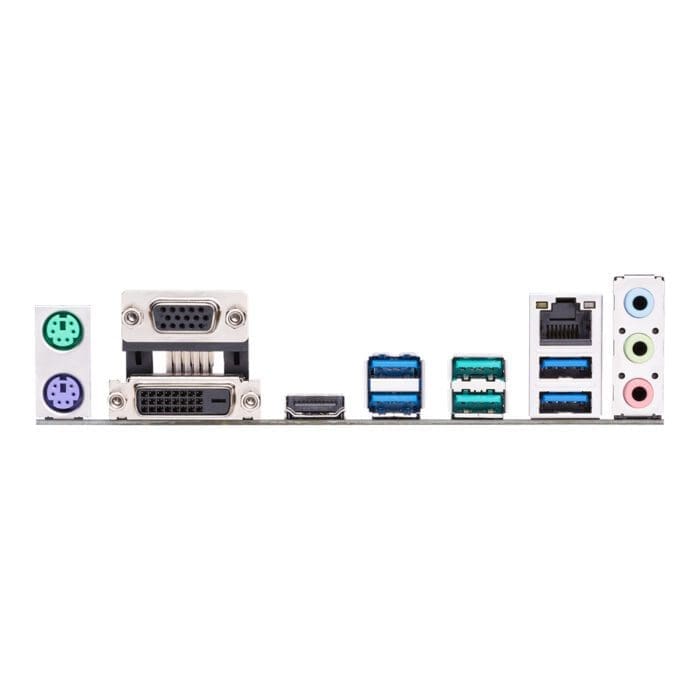

۱ عدد PS/2 keyboard (purple)
۱ عدد PS/2 mouse (green)
۱ عدد DVI-D
۱ عدد D-Sub
۱ عدد HDMI
۱ عدد LAN (RJ45) port
۲ عدد USB 3.1 Gen 2
۴ عدد USB 3.1 Gen 1
۳ عدد Audio jack
۰
۰
128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control
Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
Multi-VGA output support : HDMI/DVI-D/D-Sub ports
– Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
– Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
– Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
۴ عدد DIMM, Max. 128GB, DDR4 4400(O.C)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
۱ عدد USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
۲ عدد USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
۱ عدد M.2 Socket 3 with M key, type 2242/2260/2280/2211 storage devices support (SATA & PCIE 3.0 x 4 mode)
۱ عدد TPM header
۱ عدد S/PDIF out header
۴ عدد USB 3.1 Gen 1 port(s) (4 at back panel, blue)
۲ عدد USB 3.1 Gen 2 port(s) (2 at back panel, )
۲ عدد USB 3.1 Gen 1 port(s) (2 at mid-board)
۴ عدد USB 2.0/1.1 port(s) (4 at mid-board)
AMD B450 chipset
– ۴ عدد 4 x SATA 6Gb/s port(s)
– پشتیبانی از Raid 0, 1, 10
3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
– ۲ عدد SATA 6Gb/s port
– پشتیبانی از Raid 0, 1, 10
3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics
– ۱ عدد M.2 Socket 3, with M key, type 2242/2260/2280/2211 storage devices support (SATA & PCIE 3.0 x 4 mode)
AMD Athlon with Radeon Vega Graphics Processors
– M.2 Socket 3, with M key, type 2242/2260/2280/2211 storage devices support (SATA mode)
RAID 0
PCI-E 3.0 x4
۴ عدد DIMM, Max. 128GB, DDR4 4400(O.C)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU
Memory QVL (Qualified Vendors Lists)
The maximum memory frequency supported varies by processor
شش عدد
ندارد
Support NVMe PCIe RAID
The M.2 Socket shares bandwidth with the SATA_5/6 ports, and therefore the SATA_5/6 ports cannot be used when an M.2 device is installed
Install an AMD Ryzen 2nd Generatione or Ryzen 1st Generation Processors to support Windows 7 64-bit operating system
یک عدد
microATX
یک عدد
دو عدد
DDR4
128 گیگابایت
یک عدد
16 مسیر
یک عدد برای ماوس
شش عدد
یک عدد
دو کاناله
AMD AM4
AMD B450
AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
چهار عدد
DDR4 4400(O.C)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 مگاهرتز
۱ مسیر PCIe 3.0/2.0 x16 (x16 mode)
۱ مسیر PCIe 3.0/2.0 x16 (x8 mode)
۱ مسیر PCIe 3.0/2.0 x16 (max at x4 mode)
۲ مسیر PCIe 2.0 x1
یک عدد
