حافظه | ۴ عدد DDR4 DIMM sockets supporting up to 64 GB of system memory
Dual channel memory architecture
Support for DDR4 2666/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
To support 2666 MHz or XMP memory, you must install a 9th and 8th Generation Intel Core i9/i7/i5 processor
|
نوع تخصیص مسیر | ۱ مسیر PCI Express x16 slot, running at x16
۱ مسیر PCI Express x4 slot
۱ مسیر PCI Express x1 slot
|
فرم فاکتور | microATX
|
اسلات PCI Express x16 | یک عدد
|
اسلات PCI Express x4 | یک عدد
|
اسلات PCI Express x1 | یک عدد
|
نوع حافظه پشتیبانی شده | DDR4
|
حداکثر حافظه پشتیبانی شده | 64 گیگابایت
|
کانکتور SATA 3.0 | شش عدد
|
پورت PS/2 | یک عدد کومبو
|
پورت USB 3.1 | چهار عدد
|
کانکتور M.2 | یک عدد
|
پورت USB 2.0 | دو عدد
|
تعداد سوکت پردازنده | یک عدد
|
پیکربندی حافظه | دو کاناله
|
نوع سوکت پردازنده | Intel LGA 1151
|
چیپست | Intel B365
|
پردازندههای پشتیبانی شده | Support for 9th and 8th Generation Intel® Core i9 processors/Intel Core i7 processors/Intel® Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package
L3 cache varies with CPU
|
تعداد اسلات حافظه | چهار عدد
|
قابلیتهای مادربورد | نقاط کنترل ولتاژ
|
استانداردهای حافظه | DDR4 2666/2400/2133 مگاهرتز
|
پورت LAN | یک عدد
|
دکمهها | ندارد
|
دکمهها، سوییچها و جامپرها | ۱ عدد Clear CMOS jumper
|
نوع اسلات M.2 | PCI-E 3.0 x4
|
پشتیبانی از RAID | RAID 0
|
جک 3.5 میلیمتری | 3 عدد
|
کارت شبکه LAN | Realtek GbE LAN chip (10/100/1000 Mbit
|
کارت صدا | Realtek ALC887 codec
|
برد تغذیه | 6 فاز
|
توضیحات کارت صدا | Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver
Support for S/PDIF Out
|
کانکتورهای برق | کانکتور برق اصلی 24 پبن ATX
|
مجموع کانکتور فن | 3 عدد
|
هدر USB 3.1 | یک عدد
|
سایر توضیحات مربوط به اسلاتها | ۱ مسیر PCI Express x16 slot, running at x16
۱ مسیر PCI Express x4 slot
۱ مسیر PCI Express x1 slot
|
تعداد مسیرهای PCI Express | 16 مسیر
|

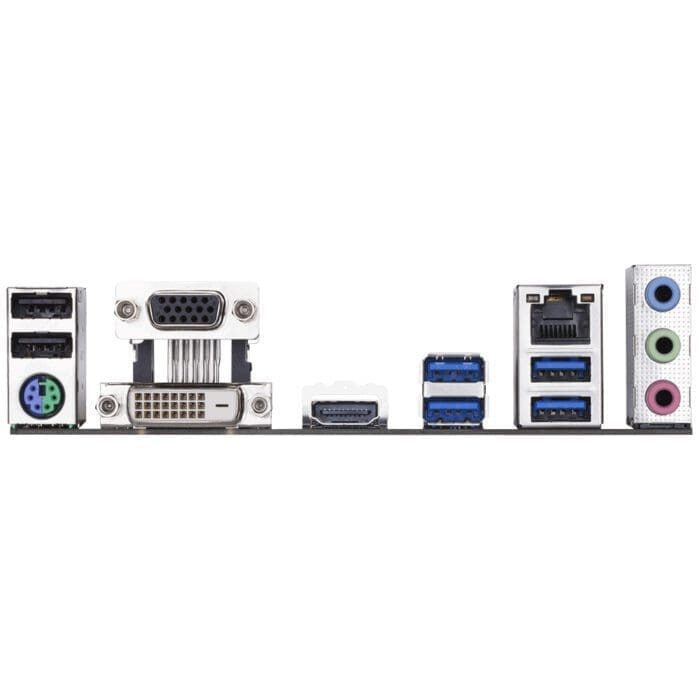

توضیحات تکمیلی پورتها | ۱ عدد PS/2 keyboard/mouse port
۱ عدد D-Sub port
۱ عدد DVI-D port
۱ عدد HDMI port
۴ عدد USB 3.1 Gen 1 ports
۲ عدد USB 2.0/1.1 ports
۱ عدد RJ-45 port
۳ عدد audio jacks
|
تعداد هدر USB 3.1 Type-C | ندارد
|
تعداد هدر USB 3.2 Type-C | ندارد
|
سایر توضیحات بایوس | ۲ عدد 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
سایر توضیحات کارت گرافیک | Integrated Graphics Processor-Intel HD Graphics support
۱ عدد D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
۱ عدد DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
– The DVI-D port does not support D-Sub connection by adapter
۱ عدد HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
– Support for HDMI 1.4 version and HDCP 2.2
Support for up to 3 displays at the same time
Maximum shared memory of 1 GB
Actual support may vary by CPU
|
توضیحات تکمیلی هدرها | ۱ عدد USB 3.1 Gen 1 header
۲ عدد USB 2.0/1.1 headers
۱ عدد CPU fan header
۱ عدد RGB LED strip header
۱ عدد front panel header
۱ عدد front panel audio header
۱ عدد S/PDIF Out header
۱ عدد Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
۱ عدد serial port header
۱ عدد parallel port header
|
توضیحات تکمیلی تمامی پورتهای USB مادربرد | ۶ عدد USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
۶ عدد USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
|
توضیحات تکمیلی قسمت ذخیرهسازی (Storage) | ۱ عدد M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
۶ عدد SATA 6Gb/s connectors
پشتیبانی از RAID 0, RAID 1, RAID 5 and RAID 10
Refer to 1-7 Internal Connectors, for the installation notices for the M.2 and SATA connectors
Intel Optane Memory Ready
|
هدر USB 2.0 | دو عدد
|
پورت D-Sub | یک عدد
|
---|
